Y-Series

Mastering the Unreachable: Specialized robotic arms for deep cavity penetration and high-altitude precision welding.

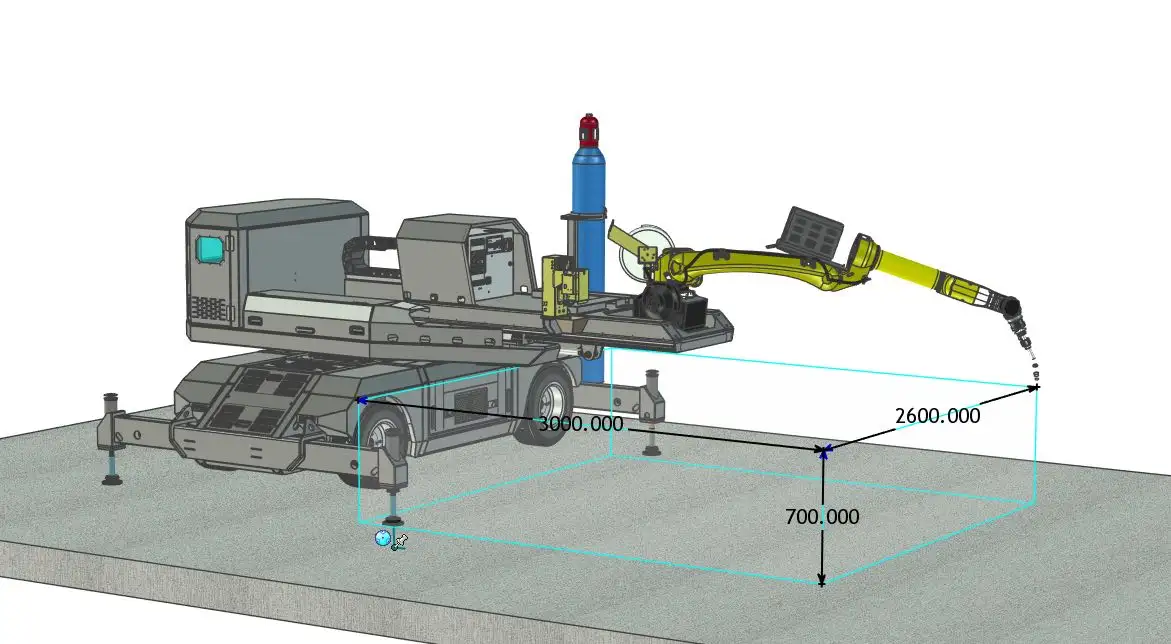

Schematic (Click to Zoom) Y1 Design

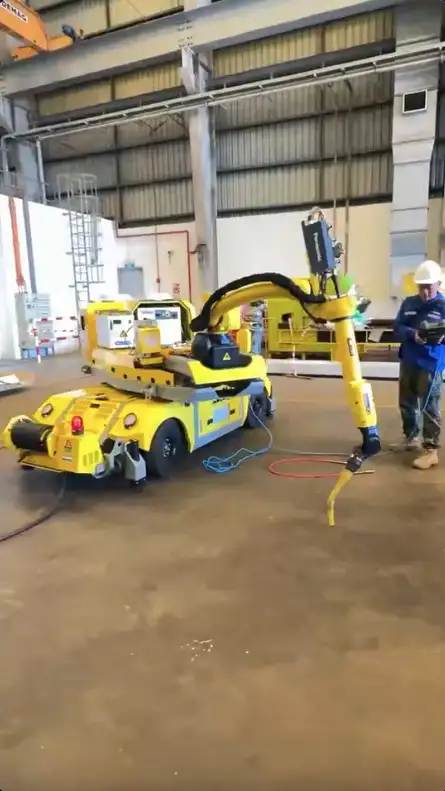

Physical

Deep Reach Expert

Y1 Standard

Optimized for industrial tanks and narrow manholes, the Y1 offers a compact footprint with enhanced deep-reach capabilities.

Max Reach Depth3.00 m

Operation Height3.725 m

Precision± 0.03 mm

View Full Range Details →

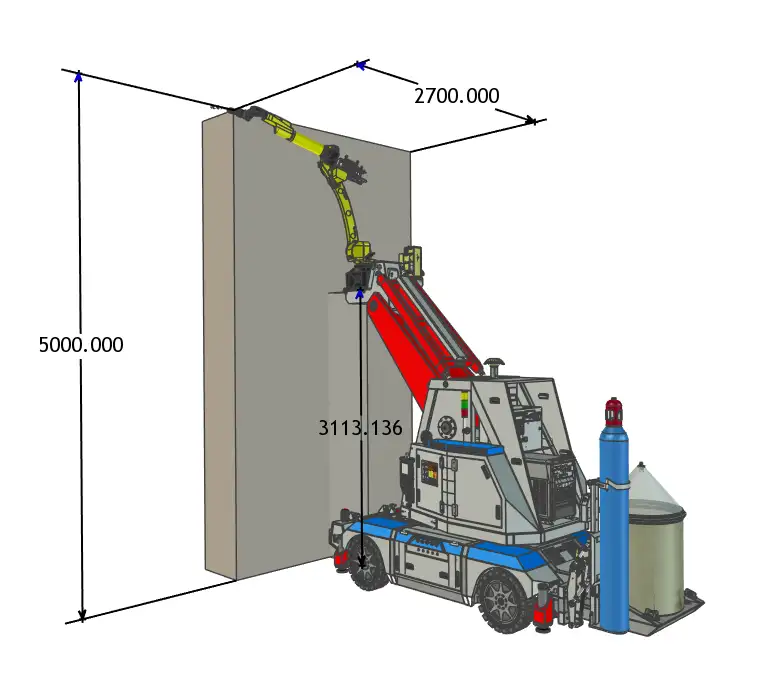

Elevation (Click to Zoom) Y1 Pro Design

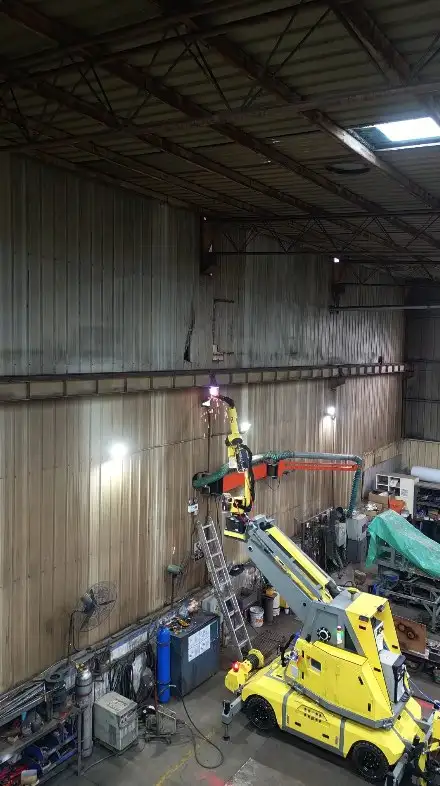

Physical

High Altitude Specialist

Designed for heavy industry and infrastructure, the Pro version utilizes a high-rigidity telescopic tower for vertical precision.

Max Elevation Reach5.00 m

Welding Width4.012 m

Min.Turning Radius5.5 m

View Full Range Details →

The Y1 Pro features our proprietary Gravity Compensation Algorithm, which stabilizes the arm end to ±0.1mm even at its 5.1m maximum extension.

Yes. Our interface allows seamless integration with major industrial welding brands while maintaining digital control.
