MENG ROBOT — GLOBAL AUTHORITY IN
INDUSTRIAL CUTTING AUTOMATION

Rooted in China, Serving the World. MENG ROBOT is a premier manufacturer of self-propelled intelligent cutting robots, specializing in medium-to-thick plate and large-scale structural components.

Direct Manufacturer
China Patent Registered
CE Certified

Hardcore Craftsmanship · Redefining Industrial Cutting

Ultra-High Lifting Envelope

Delivers exceptional spatial coverage: **AT200 model lifts up to 3.725 meters**, while the **HB200 model reaches a stable 2.807 meters**, effortlessly handling massive vertical cutting demands.

Immense Perforation & Thickness

Uncompromising power on steel plates. Achieves **vertical piercing and cutting up to 25-30mm**. During beveling operations, the maximum **bevel cutting thickness can reach 50-60mm**.

Fast-Cut Evolution Pro

Seamlessly integrates with our digital "Fast-Cut System" to upgrade directly to the **Pro Version**, unlocking multi-dimensional spatial trajectories and fully automated structural piece cutting.

Scenario-Based Dual Routing

Flexible system tiers: The standard systemless configuration offers pure, high-rigidity control for **large flat plate cutting**, while the Pro version deploys advanced algorithms for complex shapes.

Choose Your System: Standard vs. Pro Intelligent Fast-Cut

A scalable blueprint from foundational blanking to multi-dimensional 3D fabrication

Q1 Standard (No External Software)

Cost-Effective

Engineered for workshops focused primarily on basic material blanking and 2D planar geometric paths. Delivers pure, raw power and high-rigidity mechanical output without requiring complex dynamic 3D surface tracking.

Perfect for medium-to-thick carbon steel and stainless steel flat plate blanking
Supports continuous 25-30mm vertical piercing on linear or regular geometric profiles
Plug-and-play operation, bypassing early system programming or complex calibration phases

🎥 Q1 Standard Operation Demonstration Video

PRO

Q1 Pro (+ Fast-Cut System)

Advanced Algorithm

Powered natively by our proprietary "Fast-Cut System", providing high-performance multi-dimensional spatial calculations and torch-end calibration. Breaks free from 2D plane constraints to execute complex profiles on massive industrial workpieces.

Cylindrical & Irregular Surface Profiling: Supports large-diameter shell piercing and complex curve cutouts
Variable-Diameter Intersection Lines: Automated structural calculation for pipe-to-pipe or pipe-to-plate junctions
Extreme 50-60mm Thick Plate Beveling: Single-pass execution for complex K-type and X-type groove profiles

🎥 Q1 Pro Multi-Axis Pipeline Intersection Cutting Performance

Technical Specifications & Parameters Matrix

Comprehensive performance evaluation of the Q1 series mobile robot configurations

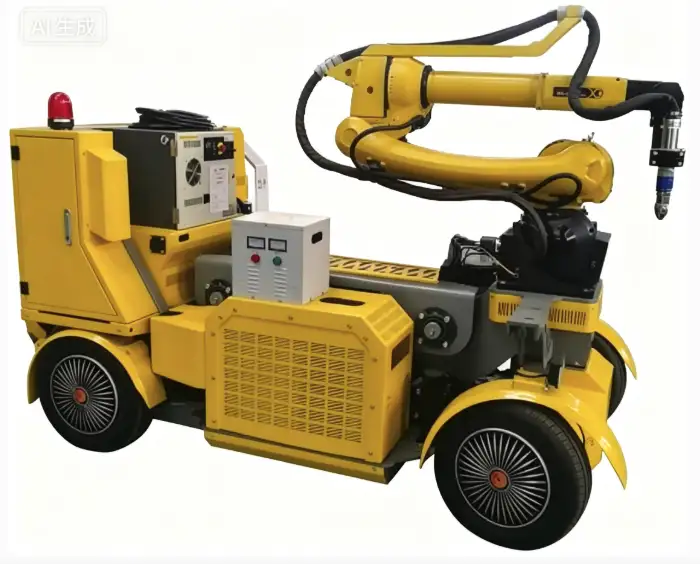

Q1 (AT200)

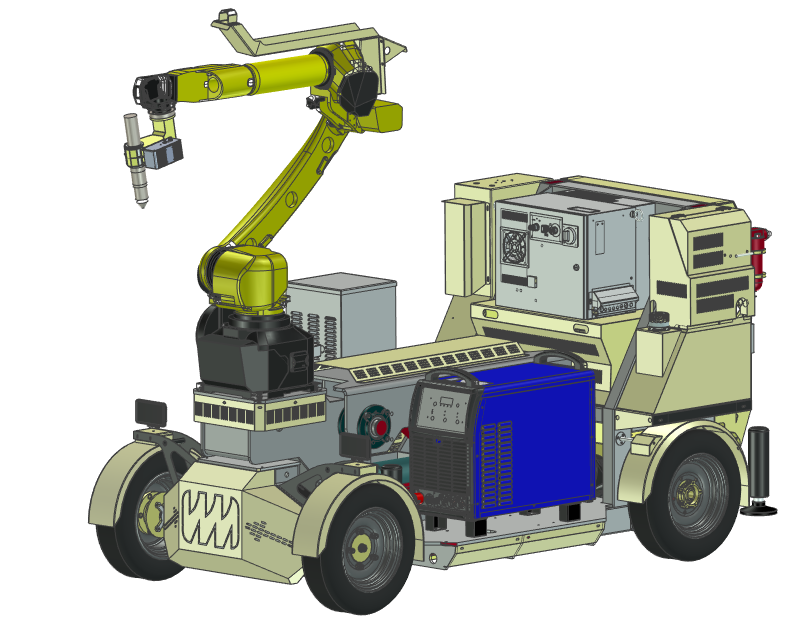

Q1 Pro (AT200)
Q1 (HB200)
Q1 Pro (HB200)
MENG FAMILY Q1 (AT200) Q1 PRO (AT200) Q1 (HB200) Q1 PRO (HB200)
Net Weight 1780KG 1780KG 2950KG 2950KG
Dimensions 2830*1605*1550 2830*1605*1550 3022*1400*2030 3022*1400*2030
Min. Turning Radius 4800mm 4800mm 1650mm 1650mm
Color Yellow Yellow Yellow Yellow
Battery Parameters 48V, 25Ah (LFP) 48V, 25Ah (LFP) 72V, 314Ah (LFP) 72V, 314Ah (LFP)
Number of Batteries 3 3 1 1
Max Safe Driving Speed 10Km/h 10Km/h 2.8Km/h 2.8Km/h
Cruise Range 19km 19km 4.2Km 4.2Km
Horizontal Cutting Width LT650-H4012mm LT650-H4012mm 4012mm 4012mm
Vertical Cutting Height LT915-V3725mm LT915-V3725mm 2807mm 2807mm
System Power 3KW (robot body) + 40KVA (LGK-200) 3.8KW (robot body) + 38KVA (Hypertherm MaxPro200)
Repeat Positioning Accuracy ±0.03mm ±0.04mm
Robotic Arm Model Fanuc M-10iD/8L Fanuc M-20iD/12L
Cutting Model aotai (Plasma) aotai (Plasma) Hypertherm MaxPro200 Hypertherm MaxPro200
Torch Operating Pressure 0.4 ~ 0.55 0.4 ~ 0.55 0.45 ~ 0.6 0.45 ~ 0.6
Max. Cutting Thickness 60 60 50 50
Piercing Thickness 30 30 25 25
Quality Cutting Thickness 40 40 32 32
Output Current Adjustment Range 30 ~ 200 30 ~ 200 50 ~ 200 50 ~ 200
High-Speed Cutting System No Yes No Yes
Cutting Materials Steel plates Steel plates, cylindrical shells, tanks Steel plates Steel plates, cylindrical shells, tanks
Academic System Support: National Enterprise Technology Center & Joint R&D Lab Compatibility.
Factory Standards: Compliant with CE, ISO9001:2026, and global heavy industry safety guidelines.
* Parameters validated by Winner Group Dynamic Lab.
Audit Reference: Version Q-CUT-V4.2 | May 2026.
